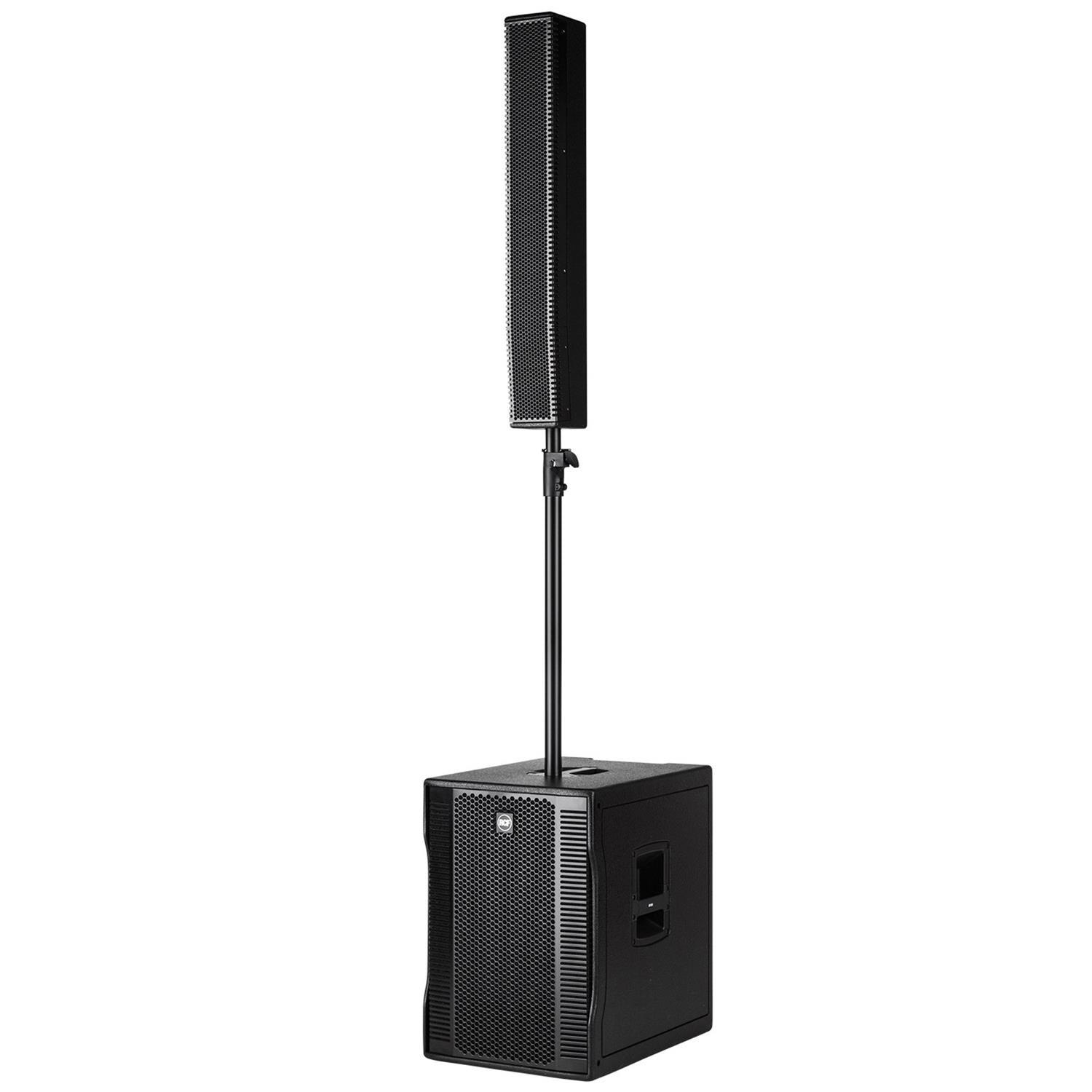

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response

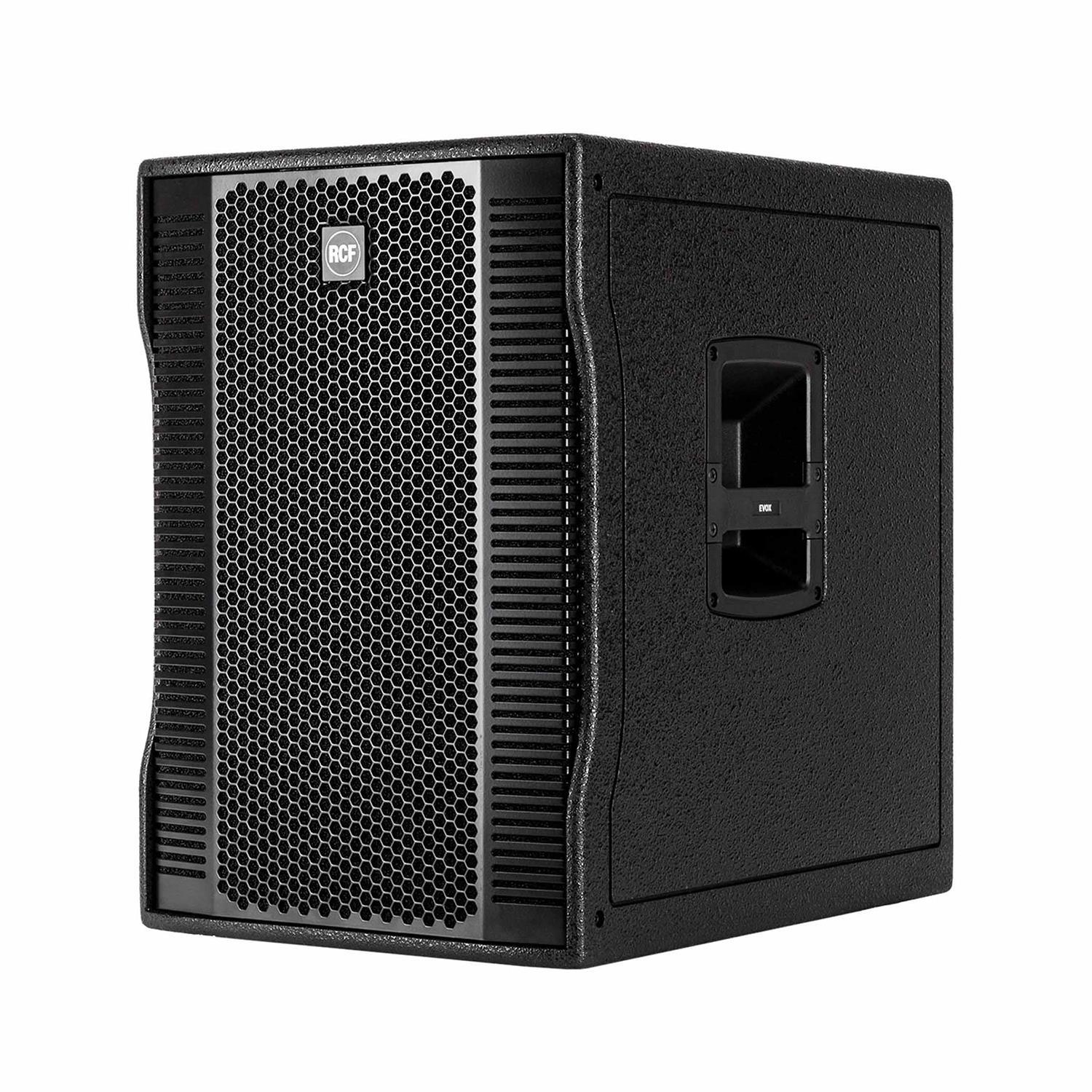

• 15″ Woofer

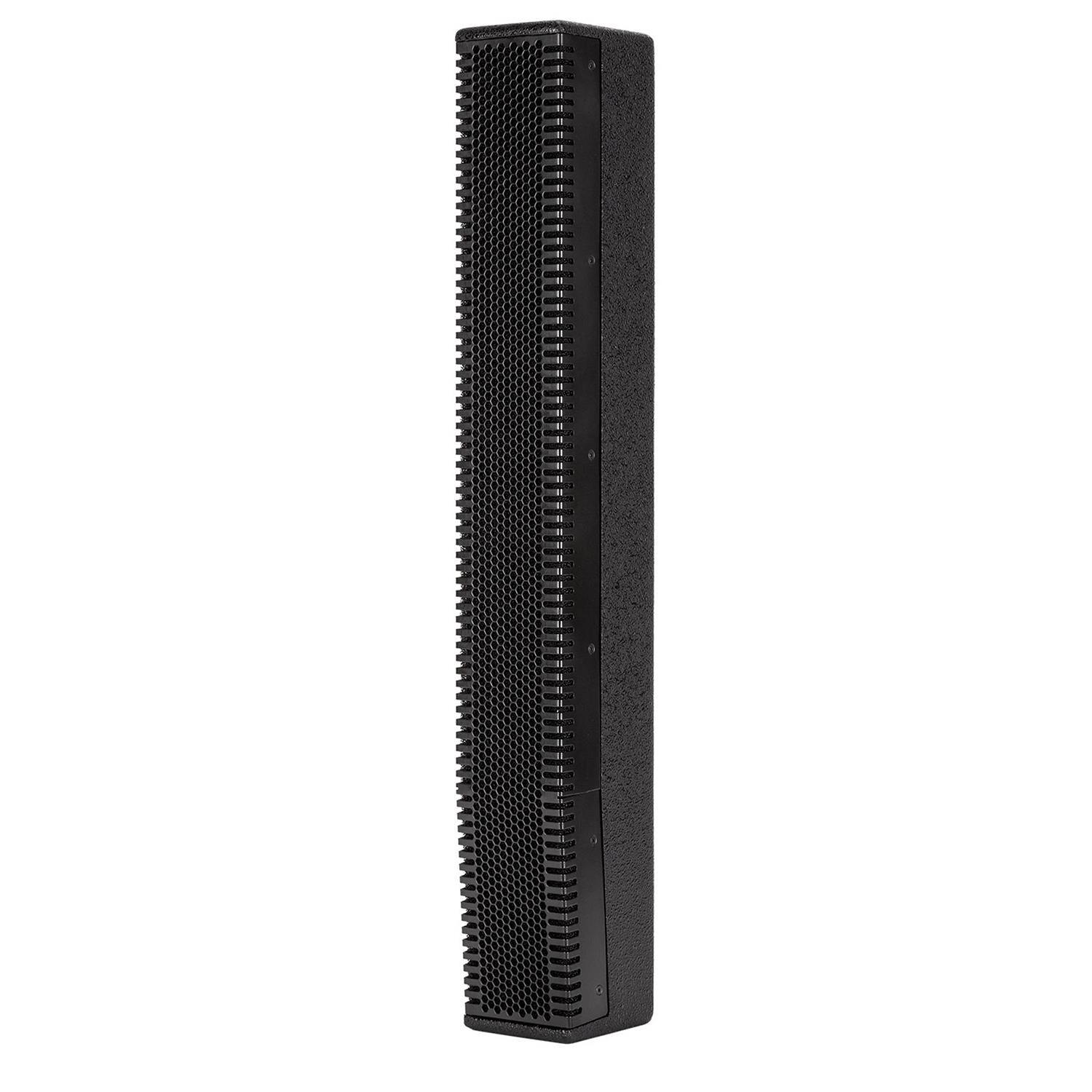

• 8 x 4″ neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

General

• Acoustical Specifications
  • Frequency Response -3 dB: 40 Hz ÷ 20 Hz
  • Max SPL: 130 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 30°
  • Fullrange: 8×4.0″, 1.0″v.c.
  • Woofer: 15″, 3.0″ v.c.
• Input/Output Section
  • Input connectors: Jack-XLR male
  • Output connectors: XLR female
  • Input sensitivity: -2 dBu / + 4 dBu
• Processor Section
  • Crossover frequencies: 180 Hz
  • Protections: thermal, rms
  • Limiter: Soft limiter
  • Controls: Volume, EQ
• Amplifier Specifications
  • Total power: 1400 W PEAK
    • High frequencies: 400 W PEAK
    • Low frequencies: 1000 W PEAK
  • Total power: 700 W RMS
    • High frequencies: 200 W RMS
    • Low frequencies: 500 W RMS
  • Cooling: Convection
  • Connections: VDE connector
• Cabinet
  • Cabinet Material: Baltic birch plywood
  • Handles: 2 side, 1 top
  • Pole Mount/Cap: Yes
  • Colour: black

Physical & Dimensions

• Height: 2220mm
• Width: 410mm
• Depth: 560mm
• Weight: 36.4kg
